Control and Regulation Technology

The wireless H128 Control Centre is the heart of WARP Systems’ automatic temperature control (control and regulation technology, zone control) with Wi-Fi/Zigbee functionality. It is the central control unit that drives the actuators on the underfloor heating manifold based on temperature data received from the wireless thermostats.
By pairing with the Heatlink app, you can operate the entire system via your smartphone or tablet, giving you insight and control over your indoor climate wherever you are. The Control Centre is available in white and black.

The wireless H128 Wi-Fi Thermostat is a smart, programmable thermostat that controls the temperature in each room within WARP Systems’ zone-control system. It wirelessly communicates with the Control Centre, which in turn regulates the underfloor heating by zone. To ensure each room is at its own comfortable temperature, you need one thermostat per room. The thermostat is available in white and black.

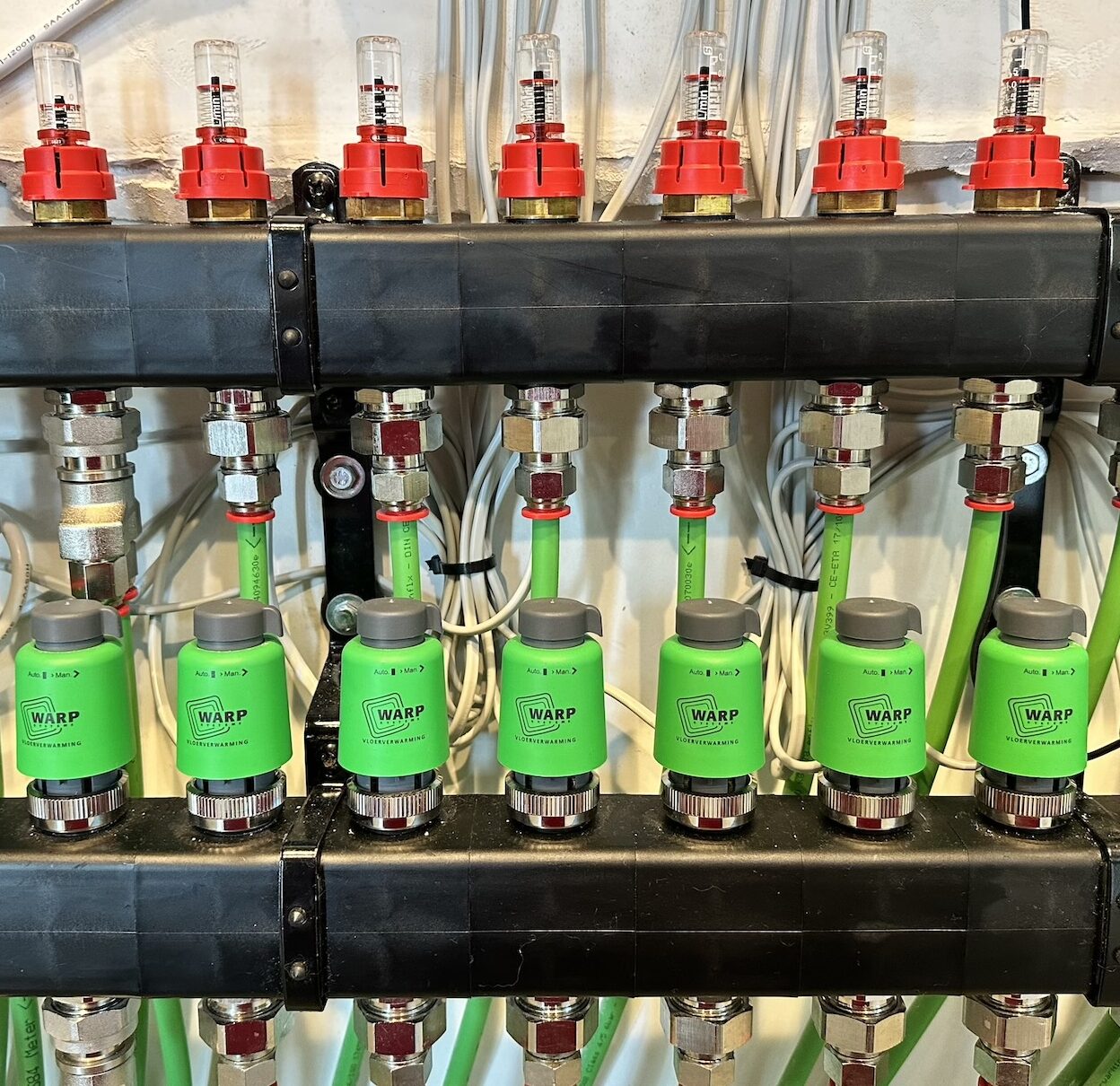

An actuator is an electrically driven thermal motor mounted on the return valves of the manifold. It automatically opens or closes the heat supply to a specific heating zone based on the signal it receives from the zone-control system. With actuators you can regulate flow automatically per room. When the set temperature on the room thermostat is reached, the actuator closes the corresponding circuit. You need one actuator per circuit on the manifold.

The H64 Control Centre is the heart of WARP Systems’ wired zone-control solution. In combination with the Master Wi-Fi Thermostat, the system regulates temperature per zone and drives the connected actuators on the manifold. The Master Thermostat measures the temperature in a single room and is hardwired to the Control Centre. Thanks to its built-in Wi-Fi module, the system can easily integrate with the Heatlink app, letting you manage temperatures anywhere in your home. The Control Centre is available in white and black.

There are two thermostat versions in the wired zone control system: the Master Wi-Fi Thermostat and the Slave Wi-Fi Thermostat. Each Control Centre requires one Master thermostat, which measures the temperature in one room and is connected to the Control Centre via cable. If needed, you can add Slave thermostats, which connect to the Master via Wi-Fi. Both versions are available in white and black.

An actuator is an electrically driven thermal motor mounted on the return valves of the manifold. It automatically opens or closes the heat supply to a specific heating zone based on the signal it receives from the zone-control system. With actuators you can regulate flow automatically per room. When the set temperature on the room thermostat is reached, the actuator closes the corresponding circuit. You need one actuator per circuit on the manifold.
